LED Cube Displays: 3D Visual Impact for Events, Retail and Corporate Spaces

An LED cube turns a simple screen into a sculptural centerpiece. Unlike flat LED walls that serve one direction, these multi-face structures deliver dynamic visual experiences from every angle, making them one of the most effective tools for maximizing engagement at events, in retail stores, and across corporate spaces.

What Is an LED Cube and Why It Matters for Your Event

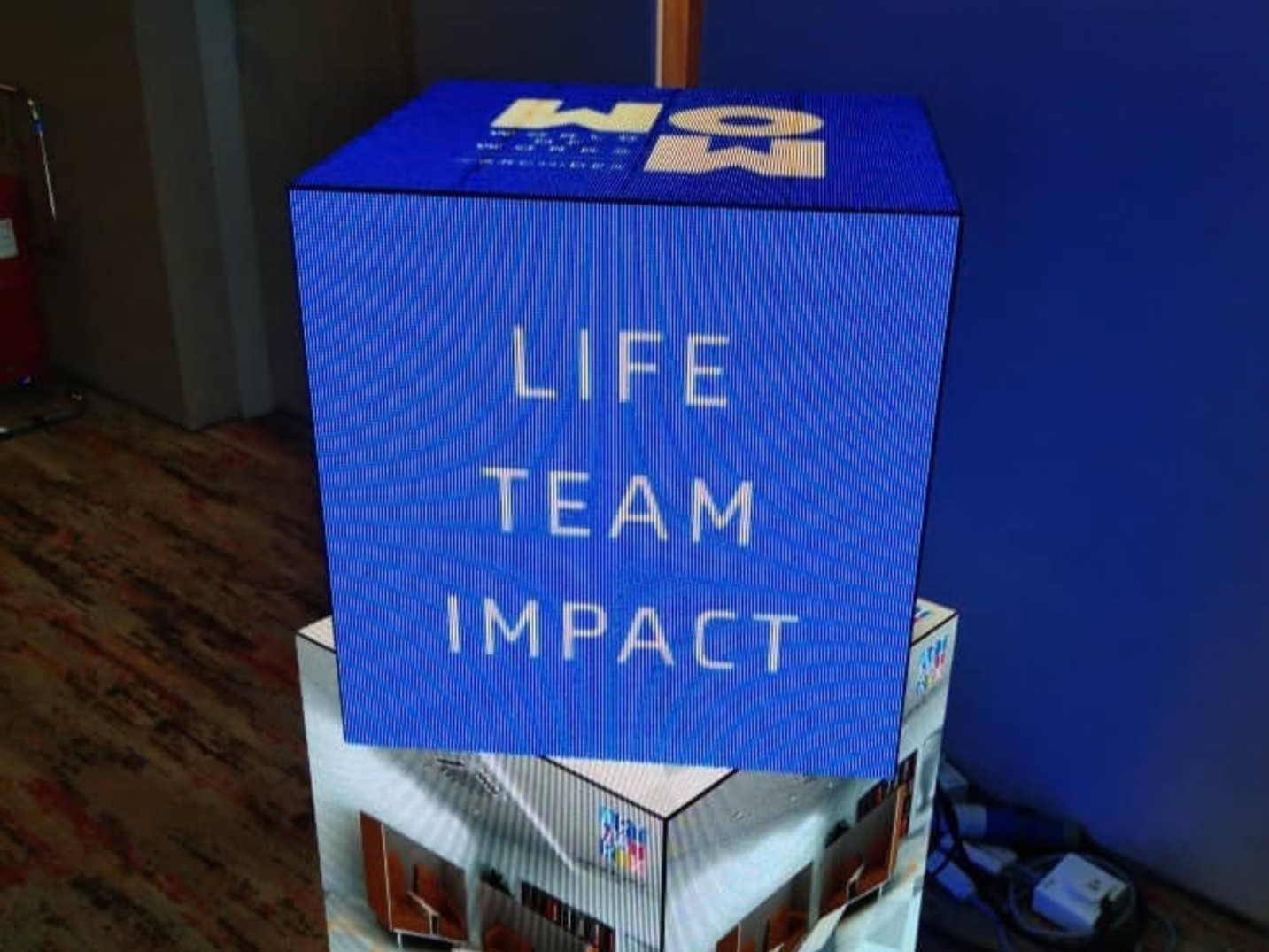

LED cubes are three-dimensional arrangements of light-emitting diodes built into a physical cubic form with active LED faces on multiple sides. The terms cube LED display, LED cube screen, and cube displays all describe these multi-face 3D LED structures designed for immersive environments where audiences move freely around the display. RGB LED cubes can produce full-color gradients and complex animations, while monochrome LED cubes use single-color LEDs for simple visuals and texts.. LED cubes can represent patterns, animations, colors, or volumetric images across their faces.

LED Cube offers 360° viewing angles, delivering a wider viewing angle compared to standard walls. Typical configurations include:

• 4-face cubes – four vertical sides active, ideal for hanging installations from ceilings or trusses
• 5-face cubes – four sides plus a top face (for ground/pedestal setups) or a bottom face (for overhead setups), maximizing visibility from key viewing angles
• 6-face cubes – all faces active for a complete, 360° panoramic effect

Heloled is one of the top providers of LED cube rental for events, trade shows, and reception areas, offering multiple installation formats across indoor and outdoor environments.

Key Features of Modern Cube LED Displays

Selecting the right cube means evaluating key features that directly affect performance and suitability for your space. LED cube displays can be monochrome or RGB, affecting their color capabilities, but commercial event cubes are almost always full-color RGB. Key features for selecting LED cubes include viewing angles and content capabilities. Here is what matters most:

Resolution and pixel pitch – A P2.5 LED Magic Cube has a pixel density of 160,000 dots per square meter, making it ideal for close-range viewing in retail environments and corporate lobbies. P3.91 and P4.81 options suit large outdoor environments and trade shows where viewing distance exceeds 5 meters.

Brightness – Indoor cubes typically deliver 600–1,500 nits, sufficient for shopping malls and reception areas. Outdoor cube LED displays need higher brightness of 5,000-6,500 nits to remain visible in direct sunlight.

Viewing angle – Premium cubes achieve 160° horizontal and vertical, ensuring consistent color and brightness as visitors circulate. This is crucial for 360° audience engagement.

Structural design – Seamless edges use precision-machined corner connectors and die-cast aluminum chassis. Robust frames support both ground-stacked and suspended cubes.

Control systems – Media servers handle synchronized video presentations across faces, supporting HDMI, DisplayPort, and SDI inputs. High refresh rates of 3,840 Hz eliminate flicker under cameras and stage music and lighting systems.

Energy and lifetime – LED modules last over 100,000 hours with average power draw around 220 W/m², running cooler than projectors.

Commercial LED cube video displays use multiple LED panels assembled with specialized brackets and magnetic screw fastening for easy troubleshooting and module replacement.

Popular LED Cube Configurations and Technical Options

LED cubes come in various sizes, resolutions, and face counts to match different applications. They are designed for both indoor and outdoor environments, making them ideal for fixed digital signage as well as temporary event installations.

Module configurations:

• 250x250mm or 320x160mm panels build into compact cubes
• Compact cubes typically measure 500mm x 500mm x 500mm (built using 250x250mm) or 480mm x 480mm x 480mm (built using 320x160mm modules) — a popular versatile format.
• Medium cubes scale from 1.0 m to 1.5 m per side, while large cubes exceed 2.0 m for arena center-hung displays

Face count options:

• 4-face: Displays different content per side or synchronized wrapped content; common for hanging setups above exhibition booths (4 vertical sides).
• 5-face: Adds a bottom screen for overhead hanging cubes (visible to attendees looking up from the floor) or a top screen for floor-mounted displays.
• 6-face: Full 360° closed cube for complete multi-directional playback and immersive spatial showcases.

Indoor vs outdoor: Indoor cubes use IP30–IP40 ratings with sleek, lighter cabinets. Outdoor cubes require IP65 sealing, higher brightness, and wind-load rated structures suitable for plazas and outdoor environments.

“Use this when…” mini-guide:

• Boutique retail or tech store counter → 0.5 m P1.5–P2.5, 4-face cube
• Exhibition booth or fashion retailer pop-up → 1–1.5 m P2.5–P3, 5-face cube
• Outdoor landmark or arena → 2 m + P3–P5, 6-face cube for long-distance engagement

Applications: From Retail Advertising to Corporate Lobbies

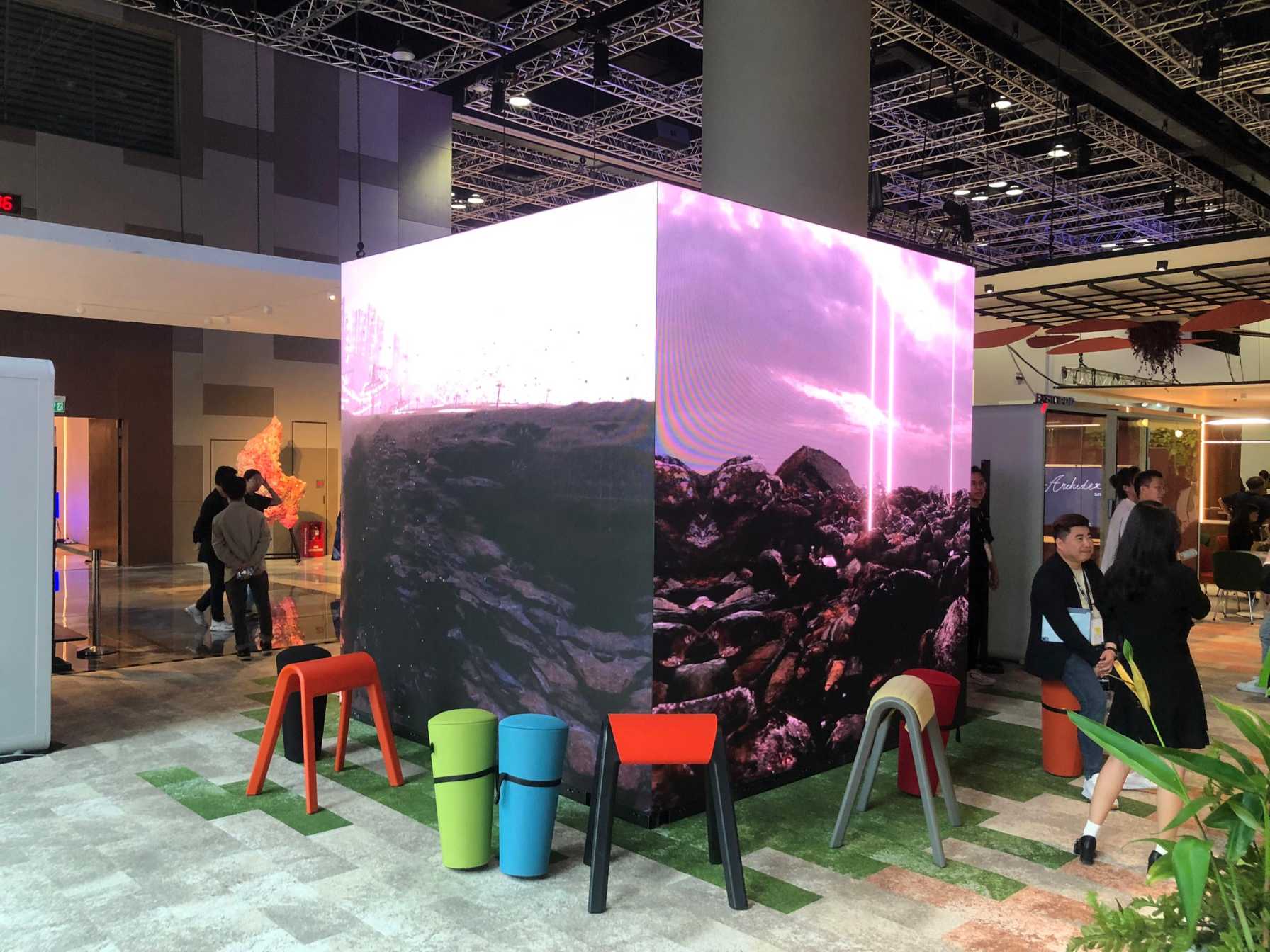

LED cubes provide stunning visuals for commercial environments wherever brands need immersive, multi-angle storytelling. LED cubes serve many applications including education, entertainment, and advertising. Large cube displays attract attention at trade shows and public spaces due to their 3D form, and LED cubes are used for events and exhibitions worldwide.

Retail advertising – In shopping malls and retail stores, cubes function as eye catching displays animating product visuals that wrap across edges. LED cubes are effective for shop advertising displays, showcasing clothing items or the latest gadgets with 3D rotations. A fashion retailer can display interactive product demonstrations on a cube in entrance areas to draw foot traffic.

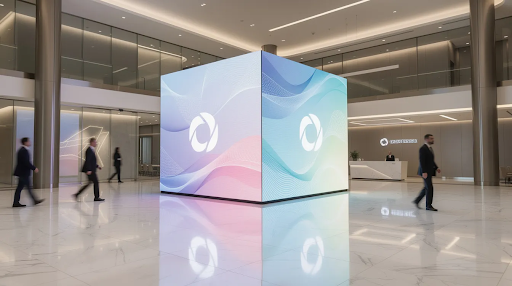

Corporate lobbies and reception areas – Cubes deliver brand experiences through real time data visualizations, welcome messages, and company achievements reels. LED cubes enhance contemporary interior designs, adding ambiance without overwhelming the space. A Rubik’s CR-A Series cube in a lobby creates a sleek focal point for visitors.

Events and live performances – Music festivals, automotive reveals, and product launches use cubes as central sculptures. Nightclub nightclubs and dance floors integrate cubes for immersive visual-music experiences. Wall mounted integrations, corner-wrapped cubes on pillars, and ceiling mounted cubes over reception desks expand placement versatility across various environments and event venues.

Designing Content for a 3D Cube LED Screen

Hardware alone does not create impact – content strategy determines whether your LED cube screen delivers or disappoints. Designers must think in multiple faces, planning continuous stories that wrap around corners or showing different content per face for effective communication.

Resolution planning: If each face is 1.6m square at P2.5 pitch, resolution per face is approximately 640×640 pixels. Get exact face resolution, pitch, and total pixel count before designing.

Content types that work:

• 3D logo reveals and product rotations for retail advertising
• Ambient motion graphics and data streams for corporate lobbies
• Live feeds and synchronized video presentations for events and live performances
• Interactive product demonstrations for tech store showcases

Design tips:

• Design for circulation – audiences see the cube from every angle, not a single front
• Keep text large, minimal, and high-contrast; avoid placing critical messages across corner edges
• Use high-contrast palettes and test on a 3D simulator
• Target 60fps with high refresh rate hardware to eliminate flicker under cameras
• Calibrate color across all faces for uniformity; manage file formats via media servers

Why Rent LED Cube with HeloLED

Heloled is one of the top providers of cube LED for events, offering specialized LED cube rental services that eliminate the complexity of ownership. Whether your project calls for a compact counter cube or a large suspended display, rental gives you the versatility to scale without capital risk.

Heloled inventory highlights:

• P2.9, P3.91, and P4.81 cubes for indoor and outdoor use
• 4, 5, and 6-face configurations with custom sizes available
• Suitable for trade shows, corporate conferences, pop-up stores, and roadshows across major cities in Malaysia.

Project workflow with HeloLED:

1. Consultation – define size, faces, pixel pitch, and indoor/outdoor factors
2. 3D design and visualization – CAD renderings for placement approval
3. Logistics and rigging planning – transport, power, safety, and ceiling or floor mounting
4. Content testing – on-site calibration and performance verification
5. Live operation – technical support throughout your event

HeloLED also handles wall mounted integrations, reception area cubes, and complex multi-cube installations for large-scale brand experiences across various environments from exhibitions to nightclubs.

Ready to make your next event unforgettable? Contact Heloled today for a custom LED cube rental quote, technical guidance, and a free 3D visualization of your project.
